Balisage Paper: Approximate CSS Styling in XSLT

Why?

In the current world of the web, much of the textural styling of XML-based documents is defined by declarations within Cascading Style Sheets (CSS) CSS. These encourage a model where XML elements are defined as members of classes, and the CSS stylesheets declare patterns to match elements of given type, class, position, ancestry, siblings and progeny, for which a set of values for properties (e.g. font, colour …), pre- and post-ambles (numbering, text), layout type (block, none, inline.…) and possible geometry (size, positioning...) are provided. Applicable patterns are chosen through a relatively simple specificity and supersessional model. For many simple presentational views of XML documents an agent who implements CSS can produce acceptable results. Many XML dialects (e.g SVG, XHTML) describe properties for many of their elements that are manipulable through CSS styling, as an alternative to or overriding direct attributive properties.

Different views of the same document can be projected by binding different CSS stylessheets. For example a 'table of contents' summary could be generated by suppressing display (display : none) of any element that is not a header or a descendant of a header. CSS works because for most cases it can provide a comparatively simple, and relatively easily understood, model that mere mortals can work with. But generally CSS has one major drawback for providing views of complex documents – it cannot, save for deletion or minor addition of textual/image content, alter the topology of the tree result, such as moving a caption element from the start to the end of the adjacent table.

Another feature is that CSS styling is through inheritance – it is not universally possible to 'block' application within a subtree; only by introducing subtree-scope overriding rules (which will still define properties) can a section of a document be protected from other CSS rules. (Mechanisms to revert to a parent-inherited value or the default initial value are being defined in later CSS versions (3, 4), but browser support is inconsistent.)

In more complex document creation from XML sources, XSLT3.0 provides vastly greater flexibility, by being effectively a full-blown (and higher-order capable) programming language with an XML tree as one of its principal datatypes. It has an arbitrary capability of manipulating a document and styling the result (e.g. through properties described at element attributes.)

Necessity is the Mother of Invention – over recent years the author has had several occasions where document styling was available in CSS, but an XML document being processed in a full-blown XSLT setting needed some of the CSS styling information applied within an XSLT execution. One option would be to manually construct equivalent XSLT libraries (templates, attributes etc.) which corresponded to the CSS intention and apply these to the source. This would of course be subject to coherence drift having to keep two styling masters in synchronisation. Another option was to see whether some equivalent XSLT could be generated from the given CSS which would detemine the same properties for the document in question, leaving the results principally as attributes on the result tree.

There are a number of cases where the effect of CSS styling might need to be evaluated before some final projection or display. Examples are:

The goal of this work is to attempt to project as much of the effect of a CSS stylesheet onto a an XML document as possible, leaving the effects as either grounded property values as attributes on relevant elements, or modest sections of added content.

In this paper I will first present a very small SVG example styled by a CSS and show what an equivalent XSLT transform could be. Possible XSLT mechanisms that should support a variety of CSS rules are then discussed, followed by how the transform itself is generated. A larger example of its use (styling an ACM paper) is then presented. Finally I consider possible developments of the technique and draw some conclusions.

A Simple Example

Suppose we have a very simple SVG document:

Figure 1: An unstyled SVG document

<svg xmlns="http://www.w3.org/2000/svg" width="250" height="150">
  <g alignment-baseline="baseline">
    <rect x="20" y="20" width="200" height="100"/>
    <rect class="a" x="100" y="5" height="140" width="40"/>
  </g>
</svg>

Now we want to improve the attractiveness of the offering, by styling it with an externally defined CSS stylesheet:

Figure 2: CSS styling unapplied in an embedded document

* { /* rule 1 */
    fill: red;
    stroke: black;
}
rect.a { /* rule 2 */
    fill: blue;
    fill-opacity: 0.5;
}

(If you are viewing this directly in an HTML browser, where the SVG is referenced by an img element, as opposed to the mediaobject in the original DocBook source, then you won't see the pretty colours – this is one of the issues this work is addressing!)

SVG extends the CSS property vocabulary for its own specific presentational properties, such as fill. In line with the don't change topology philosophy of CSS, these do not cover alterations to geometry, i.e. we can't change the size of one of the rectangles through a CSS stylesheet. If we now reference this SVG document from within another, such as an HTML rendering of this paper, the CSS styling probably won't come through^[2]. A much more robust approach would be to fix the styling on the SVG and embed it directly:

Figure 3: CSS styling grounded onto an embedded example

<svg xmlns="http://www.w3.org/2000/svg" width="250" height="150"
  fill="red" stroke="black">
  <g alignment-baseline="baseline" fill="red" stroke="black">
    <rect x="20" y="20" width="200" height="100"
      fill="red" stroke="black"/>
    <rect class="a" x="100" y="5" height="140" width="40"
      fill="blue" stroke="black" fill-opacity="0.5"/>
  </g>
</svg>

This paper is about how, and to what extent, this projection of a CSS stylesheet onto an XML document can be performed in an entirely XSLT execution environment.

Similar work

The problem of incorporating CSS into the XSL-FO mix has been addressed by a specific product – CSSToXSLFO. http://www.re.be/css2xslfo/index.xhtml which is specifically targetted to generated styled XSL-FO structures corresponding to the box-model of layout implicit in CSS. Internally it uses the Flute Java-based CSS Parser to generate an internal (Java) rule structure. This structure is then applied across the (arbitrary) input XML document to create a DOM tree with additional namespaced attributes or elements (e.g. @css:text-align, css:before) which define the appropriate property as determined by the CSS. This intermediate document is then converted to suitable XSL-FO by a generic XSLT stylesheet matching these determined CSS directives attached to elements.

Externally my approach is perhaps similar, in that the CSS sheet is parsed into an action that determines CSS-defined styling properties and additional content, though these are used to overwrite any existing properties of the same name, and no further conversion is attempted. Internally it is quite different, developing a complete parse tree for the CSS (using regular expressions in XSLT), which is used to generate a suitable XSLT program.

The execution model

A single simple CSS rule declaration has the following generic form:

selector-pattern { property : value; property : value; … }

where for elements matching the selector pattern, values for the given style properties are declared. Such property values might be superseded or modified by properties defined in other rules with more specific matches to the given element. In this way, stylesheets can cascade their effects. For example a rule h1 {font-size: 130%;} in a generic stylesheet merely declares that h1 elements should be rendered in a 30% larger font than whatever is the default. A more specific CSS sheet can define what that default font size should be or even force a specific font size on the h1 element.

The selector patterns, whilst not as rich as XSLT's generic XPath patterns, do have enough expressiveness to cover ancestry, class membership and identity reference, sibling position, descendant contents, attribute values and so forth. Pseudo-element selectors permit styling portions of the tree that are not direct elements, such as adding preamble via the :before selector.

Most properties are simple stylistic scalar values (e.g. color:), but some relate to box-model display control (display:) and others declare additional content or counter variables, which are used to support numbering. Later versions have started to incorporate declarations about column placement, flow targets etc.

The precedence model between these CSS declarations is comparatively simple – a specificity model for a given property examines patterns which would effect it and score them in a hierarchy on the numbers of identity attribute, other attribute and element name references in the pattern. Specific @style attributes win out and the universe of declarations is also split according to source (user agent, user and author) and an importance declaration (!important).

<xsl:template match="*">
  <xsl:copy>
    <xsl:sequence select="@*"/>
    <xsl:apply-templates select="." mode="css"/>
    <xsl:apply-templates/>
  </xsl:copy>
</xsl:template>
<xsl:template match="*" priority="1.5" mode="css"/>
<xsl:template priority="1.501" mode="css" match="*">
  <xsl:next-match/>
  <xsl:attribute name="fill">red</xsl:attribute>
  <xsl:attribute name="stroke">black</xsl:attribute>
</xsl:template>
<xsl:template priority="1.502" mode="css" match="rect[tokenize(@class,'\s+')='a']">
  <xsl:next-match/>
  <xsl:attribute name="fill">blue</xsl:attribute>
  <xsl:attribute name="fill-opacity">0.5</xsl:attribute>
</xsl:template>

<svg xmlns="http://www.w3.org/2000/svg" width="250" height="150" fill="red" stroke="black">
     <g alignment-baseline="baseline" fill="red" stroke="black">
        <rect x="20" y="20" width="200" height="100"
              fill="red" stroke="black"/>
        <rect class="a" x="100" y="5" height="140" width="40"
              fill="blue" stroke="black" fill-opacity="0.5"/>
    </g>
</svg>

<xsl:template match="*">
  <xsl:copy>
    <xsl:sequence select="@*"/>
    <xsl:variable name="style-att" as="attribute()*">
      <xsl:apply-templates select="." mode="css"/>
    </xsl:variable>
    <xsl:sequence select="$style-att"/>
    <!-- By writing onto an element, we ensure that same-name attributes overwrite -->
    <xsl:variable name="h" as="element()">
      <H>
        <xsl:sequence select="$style-att"/>
      </H>
    </xsl:variable>
    <xsl:if test="exists($style-att)">
      <xsl:attribute name="style" select="string-join(($h/@* ! (name() || ':' || .)), ';')"/>
    </xsl:if>
    <xsl:apply-templates/>
  </xsl:copy>
</xsl:template>
<xsl:template match="*" priority="1.5" mode="css"/>
<xsl:template priority="1.501" mode="css" match="*">
  <xsl:next-match/>
  <xsl:attribute name="fill">red</xsl:attribute>
  <xsl:attribute name="stroke">black</xsl:attribute>
</xsl:template>
<xsl:template priority="1.502" mode="css" match="rect[tokenize(@class,'\s+')='a']">
  <xsl:next-match/>
  <xsl:attribute name="fill">blue</xsl:attribute>
  <xsl:attribute name="fill-opacity">0.5</xsl:attribute>
</xsl:template>

Generated content

CSS selectors can also include qualifiers (pseudo-elements) that add (textual) content to a given element. This is often used to support list labelling or numbering of headers or running entities such as figures or tables. (Sadly this isn't a feature of SVG, so instead of illustrating with pictures, I'll have to use dull XHTML instead.) As a very simple example:

Figure 6: Some additional content on XHTML elements

*{ font-family: arial, helvetica;}
h1, h2 { color: red; }
h1:before {content: "HEADING: " open-quote; }
h1.vital:before {content: "VITAL: " open-quote; }
h1:after {content:  close-quote; }
<body>
  <h1>First h1 heading</h1>
  <p>Paragraph</p>
  <h2>First h2 heading</h2>
  <p>Paragraph</p>
  <h1 class="vital">Second h1 heading</h1>
  <p>Paragraph</p>
  <h2>Second h2 heading</h2>
  <p>Paragraph</p>
</body>

The :before and :after selectors target effectively the beginning and end respectively of the contained content of the given element, using the content property (which can either be text, source resource URI, smart quotes, counters (see later) or the value of an attribute on the source element) as the content to insert. [Technically in CSS3 pseudo-elements such as these must use a double-colon :: prefix to distinguish from pseudo-classes, but :before and :after are permitted in backwards compatibilty for CSS1 and CSS2. See Selectors Level 3].

To process these we have a parallel set of templates that process the overall body of the element, collecting before and after content sections in turn being passed as tunnelled variables of xs:string? type. (Content is as far as I'm aware not additive, so more specific content overrules less specific.) The match patterns are the same as those used for any normal styling for that element.

Table III

<xsl:template match="*" mode="body"> <xsl:param name="before" tunnel="yes"/> <xsl:param name="after" tunnel="yes"/> <xsl:copy> <xsl:apply-templates select="@*" mode="#current"/> <xsl:apply-templates select="." mode="css"/> <xsl:value-of select="$before"/> <xsl:apply-templates mode="#current"/> <xsl:value-of select="$after"/> </xsl:copy> </xsl:template> <xsl:template priority="1.501" mode="body" match="h1"> <xsl:param name="before" as="item()?" select="()" tunnel="yes"/> <xsl:variable name="content" as="item()*"> <xsl:text>HEADING: </xsl:text> <xsl:text>‟</xsl:text> </xsl:variable> <xsl:next-match> <xsl:with-param name="before" select="($before,string-join($content))[1]" tunnel="yes"/> </xsl:next-match> </xsl:template>

<xsl:template priority="1.502" mode="body" match="h1[tokenize(@class,'\s+')='vital']"> <xsl:param name="before" as="item()?" select="()" tunnel="yes"/> <xsl:variable name="content" as="item()*"> <xsl:text>VITAL: </xsl:text> <xsl:text>‟</xsl:text> </xsl:variable> <xsl:next-match> <xsl:with-param name="before" select="($before,string-join($content))[1]" tunnel="yes"/> </xsl:next-match> </xsl:template> <xsl:template priority="1.503" mode="body" match="h1"> <xsl:param name="after" as="item()?" select="()" tunnel="yes"/> <xsl:variable name="content" as="item()*"> <xsl:text>”</xsl:text> </xsl:variable> <xsl:next-match> <xsl:with-param name="after" select="($after,string-join($content))[1]" tunnel="yes"/> </xsl:next-match> </xsl:template>

Counters

CSS uses the same mechanism to declare, modify and interpolate the values of counters, which become important in styling sectioned documents.

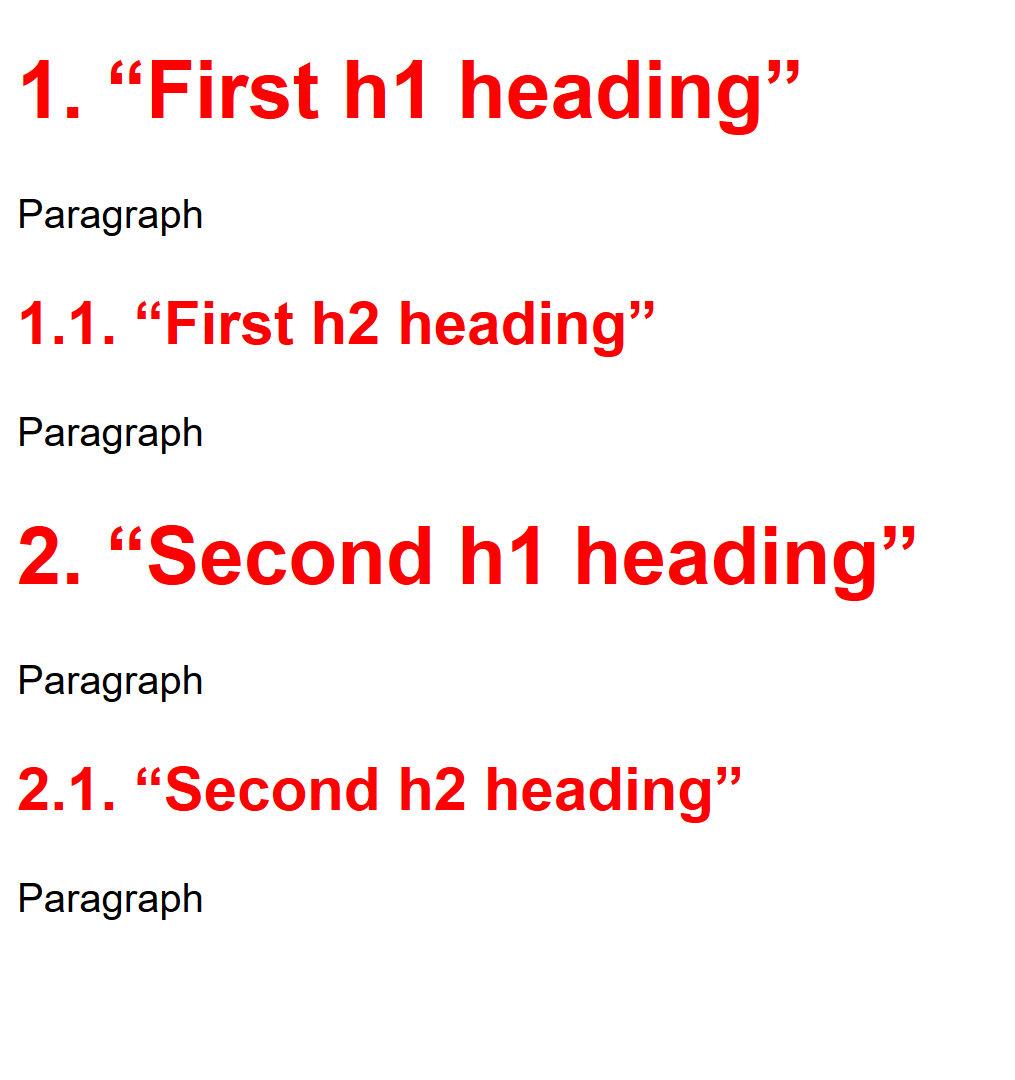

Figure 7: XSLT equivalents for numbered counters

...
body {counter-reset: h1;}
h1:before{
  counter-increment: h1;
  content: counter(h1) ".  " open-quote;
  counter-reset: h2;
}
h2:before{
  counter-increment: h2;
  content: counter(h1) "." counter(h2)".  " open-quote;
}
h1:after, h2:after{
  content: close-quote;
}

<body>
  <h1>First h1 heading</h1>
  <p>Paragraph</p>
  <h2>First h2 heading</h2>
  <p>Paragraph</p>
  <h1 class="vital">Second h1 heading</h1>
  <p>Paragraph</p>
  <h2>Second h2 heading</h2>
  <p>Paragraph</p>
</body>

When the counter names are the same as the elements they are counting, and same-name elements don't nest, an equivalent structure for the h2:before rule can be built in the XSLT by altering the content to:

<xsl:variable name="content" as="item()*">
  <xsl:variable name="last.reset" select="()[last()]"/>
  <xsl:value-of select="count(if(exists($last.reset)) then preceding::h1[. &gt;&gt; $last.reset] else preceding::h1) + 0"/>
  <xsl:text>.</xsl:text>
  <xsl:variable name="last.reset" select="((preceding::h1))[last()]"/>
  <xsl:value-of select="count(if(exists($last.reset)) then preceding::h2[. &gt;&gt; $last.reset] else preceding::h2) + 1"/>
  <xsl:text>. </xsl:text>
  <xsl:text>“</xsl:text>
</xsl:variable>

which counts back through the relavent elements to the last element which reset the given counter^[5]. Obviously more complex code can be developed to handle arbitrary counter names, and within an XSLT3.0 environment accumulators may offer a more elegant solution.

Using accumulator as counters

XSLT3.0 introduced accumulators to support the processing or retaining data from the source tree for later use within streamed processing. They have parallels with xsl:key, but rather more flexibility, and can be considered as a map from source tree nodes to an arbitrary value, which is computed by a walk through the tree computing a pre-descent and a post-descent value for each node. In the absence of any applicable rule that changes the value of the accumulator, the value remains constant. Thus we could compute the values of the h1 and h2 counters above (which increment by 1) with the following:

<xsl:accumulator name="h1" initial-value="0">
 <xsl:accumulator-rule match="h1" phase="start" select="$value + 1"/>
</xsl:accumulator>
<xsl:accumulator name="h2" initial-value="0">
 <xsl:accumulator-rule match="h1" phase="start" select="0"/>
 <xsl:accumulator-rule match="h2" phase="start" select="$value + 1"/>
</xsl:accumulator>

and we retrieve the value of the counters by accumulator-before('h1') and accumulator-before('h2') respectively. Note that the h2 rule gets its value reset to 0 by any h1 element, as declared by the h1 rule. CSS defines that numbering will nest for descendants using the same counter. This can be accomodated for a nested example like ol/li.. ol/li by using the accumulator to hold a stack of values and popping the stack on exit from the list:

<xsl:accumulator name="list" initial-value="()">
 <xsl:accumulator-rule match="ol" phase="start" select="0, $value"/>
 <xsl:accumulator-rule match="ol" phase="end"
   select="if(ancestor::ol) then tail($value) else $value"/>
 <xsl:accumulator-rule match="li" phase="start" select="head($value) + 1,tail($value)"/>
</xsl:accumulator>

This uses the post-descent phase of processing an ol to return to the previous level if it is within an outer ol and the value is now accessed with head(accumulator-before('list')).

Drawbacks, shortcomings and workrounds

The currrent technique of course falls well short of handling all CSS constructs, but there are some drawbacks and shortcomings that might be susceptible to different approaches:

<xsl:template match="span[tokenize(@class, '\s+') = 'a']"
  priority="1.5" mode="css:properties" as="map(*)">
 <xsl:param name="css:properties" as="map(*)" tunnel="yes"/>
 <xsl:variable name="lower-props" as="map(*)">
  <xsl:next-match/>
 </xsl:variable>
 <xsl:variable name="new-props" as="map(*)">
  <xsl:map>
   <xsl:map-entry key="'color'" select="'blue'"/>
   <xsl:map-entry key="'font-size'" select="$css:properties('font-size') * 0.70"/>
  </xsl:map>
 </xsl:variable>
 <xsl:sequence select="map:merge(($lower-props, $new-props))"/>
</xsl:template>

<xsl:template match="span[tokenize(@class, '\s+') = 'a']"
   priority="1.5" mode="css:apply" as="attribute()*">
 <xsl:variable name="props" as="map(*)">
  <xsl:apply-templates select="." mode="css:properties"/>
 </xsl:variable>
 <xsl:attribute name="color" select="$props('color')"/>
 <xsl:attribute name="font-size" select="$props('font-size')"/>
</xsl:template>

<xsl:accumulator name="font-size" initial-value="12">
 <xsl:accumulator-rule match="div[tokenize(@class, '\s+') = 'small']" select="10"/>
 <xsl:accumulator-rule match="span[tokenize(@class, '\s+') = 'a']" select="$value * 0.7"/>
</xsl:accumulator>

rect.large {
  width: 200;
}

<xsl:template priority="..." mode="css" match="rect[tokenize(@class,'\s+')='large']">
  <xsl:next-match/>
  <xsl:attribute name="width">200</xsl:attribute>
</xsl:template>

Constructing the XSLT transform

In this section I'll discuss how the XSLT transform to perform the CSS styling is constructed. As this tool was built up incrementally as needed, some parts are certainly not as complete as they eventually should be.

The first step of this process is to parse the CSS stylesheet(s) to produce an XML equivalent parse tree, from which code equivalents can be generated through normal XSLT push-processing methods. It should be possible of course to use some form of full-blown parser, perhaps one generated by Gunther Rademacher's excellent parser generator REx REx^[7]. Another option would be to build on the example of Invisible XML described by Pemberton Pemberton2013 which uses parsing CSS as an example. I'll return to these possibilities in the conclusions.

However, in the somewhat ad hoc environment within which this tool was originally used, and given the assumption that the complexity of the CSS stylesheets being processed is understood well and that content is friendly (e.g. strings don't contain { or }), compound use of regular expressions has sufficed so far.

CSS stylesheets can import other stylesheets through @import placed at the directives at the head of a file – the semantics of the collection are flat, so a recursive inclusion sweep through the implied URL network concatentating text will yield a collection of statements that are in the correct document order.

After removing comments, the text of the CSS is split into separate rules by tokenization against a \}\s* pattern. Further regular expression tokenization gives us for each rule the selector text and a sequence of property/value pairs. The selector text is then parsed using a set of regular expressions (operating within an xsl:analyze-string instruction) to produce a modified @match attribute containing a suitable XPath equivalent. For extensibility these regular expressions are bound to variables – the following section of the converter shows how they're used^[8]:

<xsl:variable name="elementIdP">\w+#[\w\-]+</xsl:variable>
<xsl:variable name="idP">#[\w\-]+</xsl:variable>
<xsl:variable name="elementClassP">\w+\.[\w\-_\.]+</xsl:variable>
<xsl:variable name="classP">\.[\w\-_\.]+</xsl:variable>

<xsl:variable name="regex"
            select="string-join(($elementIdP,$idP,$elementClassP $classP),'|')"/>

<pattern match="{.}">
  <xsl:attribute name="match">
    <xsl:analyze-string select="." regex="{$regex}">
      <xsl:matching-substring>
        <xsl:choose>
          <xsl:when test="matches(.,$elementIdP)">
            <xsl:value-of select="substring-before(.,'#')||'[@id='||$apos||substring-after(.,'#')||$apos||']'"/>
          </xsl:when>
          <xsl:when test="matches(., $idP)">
            <xsl:value-of select="'*[@id='||$apos||substring-after(.,'#')||$apos||']'"/>
          </xsl:when>
          <xsl:when test="matches(., $elementClassP)">
            <xsl:value-of select="substring-before(.,'.')||jwl:classPredicates(.)"/>
          </xsl:when>
          <xsl:when test="matches(., $classP)">
             <xsl:value-of select="'*'||jwl:classPredicates(.)"/>
          </xsl:when>
          ...
        </xsl:choose>
      <xsl:non-matching-substring>
        <xsl:value-of select="."/>
      </xsl:non-matching-substring>
    </xsl:analyze-string>
  </xsl:attribute>
  <xsl:sequence select="$properties"/>
</pattern>

These regular expressions are used twice – firstly within an overall match (when they have been joined as a union) and then individually in specific tests for particular components – the order of these choices can be used to match more specific cases before more general, such as a named element with class before a generic class. These pattern structures not only can contain the selector pattern and any implied properties, but also any other qualifiers, such as being a :before pseuo-element. As an example:

<pattern match="*">
  <xsl:attribute name="font-family">arial, helvetica, sans-serif</xsl:attribute>
</pattern>
<pattern match="body">
  <xsl:attribute name="counter-reset">h1</xsl:attribute>
</pattern>
<pattern match="h1">
  <xsl:attribute name="color">red</xsl:attribute>
</pattern>
<pattern match="h2">
  <xsl:attribute name="color">red</xsl:attribute>
</pattern>
<pattern match="h1" action="before">
  <xsl:attribute name="counter-increment">h1</xsl:attribute>
  <xsl:attribute name="content">counter(h1) ". " open-quote</xsl:attribute>
  <xsl:attribute name="counter-reset">h2</xsl:attribute>
</pattern>
<pattern match="h2" action="before">
  <xsl:attribute name="counter-increment">h2</xsl:attribute>
  <xsl:attribute name="content">counter(h1) "." counter(h2)". " open-quote</xsl:attribute>
</pattern>
<pattern match="h1" action="after">
  <xsl:attribute name="content">close-quote</xsl:attribute>
</pattern>
<pattern match="h2" action="after">
  <xsl:attribute name="content">close-quote</xsl:attribute>
</pattern>

(Note that these pattern elements contain xsl:attribute instructions, which will then be copied into the final templates of the transform.) We now have a sequence of all the rules within the CSS. They should then be sorted according to their CSS specificity rank (a four-level vector), which can be calculated while the pattern elements are being constructed, e.g.

p.footnote →
  <pattern match="p[tokenize(@class,'\s+')='footnote']"
     specificity="0,0,1,1">....
section#bibliography > p.header →
  <pattern match="section[@id='bibliograph']/p[tokenize(@class,'\s+')='header']"
     specificity="0,1,1,2">....

This sorted set of rule descriptions is then used to generate an XSLT template (as shown in Figure 4) in mode css for each one, with a successively increasing priority and a generic form of executing lower priority matches first through an xsl:next-match chain followed by writing the relevant attribute properties.

With the equivalent stylesheet formed, it can either be emitted as a result, to be used externally, or within an XSLT3.0 environment, it can be used as the source stylesheet for a transform() function invocation to provide the styling to some candidate XML within the encompassing stylesheet itself.

A larger example

A more realistic example is the authoring/production process for a professional paper to be published eventually in PDF format. The publisher, in this case the ACM, provides a style guide, and templates in Word or LaTeX. In this case the paper source, much of which might be autogenerated (including self-laying-out SVG sections) was in neither of those formats, but in an extended and well-formed XHTML. The publication route, which had been developed over several years, involved a mapping from XHMTL to an extended SVG/FO format (which included layout directives), then to a fully grounded SVG and thence to PDF with a SVG→PDF converter^[9].

Originally the paper sources were created in a standard XML editor and the ACM styling was imposed through XSLT templates and attribute sets that were used to form up the equivalent document content and layout directives. This was reasonable, but the editing front-end was all angle brackets. With the advent of styled authoring packages, such as that in Oxygen, where a document is viewed and edited through a CSS stylesheet, it became possible to edit the document with most elements styled reasonably – e.g. paragraphs have correct fonting, headings look similar to those that will be in the final document, including section numbering, lists are seen as lists etc^[10] and angle brackets are rarely seen!

It took little time to write the ACM-equivalent CSS for the main components of an XHTML report, so the paper authoring became much easier. Then we can use the techniques described above to ground the style of the XHTML according to the CSS, and remove the attribute-set styling from the XHTML→SVG/FO step. In the process of doing this of course, we increase the generality of the solution. Textural styling (as opposed to layout/geometric) can now be completely defined from the CSS.

This is a part of the original source, where there are some additional element declarations (embed supports adding multiple images, declaring their relative positioning and sizing), and attribute properties (@lay:float declares that this element, in this case this entire div, can always float forward (next page, next column..) if it won't fit in remaining available space.)

<div lay:float="always" lay:id="d48e871">
  <figure id="sE2" height="free">
    <embed src="simpleExtend-2.svg?type=tree simpleExtend-3.svg" xpath="(.//svg:g[@id='main']/*,./*)[1]"
       stack-offset="50" TYPE="image/svg-xml" gap-y="5" height="20" columns="2" box="no" lay:same.scale="true"/>
  </figure>
  <p class="caption">Figure 6. A continual variation of Figure 5</p>
</div>
<p>The retained instructions (<code>xsl:for-each</code>...) are considered to be a null element
   as far as layout is concerned, will not be displayed in an SVG viewer, have no influence on
   geometry and will be copied in place in the resulting resolved flow<sup class="fnIndex">8</sup>.</p>
<p class="footnote" lay:footnote="footnote">
  <sup class="fnIndex">8</sup>This is not so for topologically-modifying layouts,
  such as sort-by-size but any  eventual (graphical) results from these instructions
  would be placed correctly on resolving the parent's layout.</p>
<p>There are a small number of possible types of propagation
   that may be declared in an <code>@R:retain</code> attribute:</p>
<ul>
  <li>
    <code>true</code> - execute the instruction and always retain.</li>
  <li>
    <code>while[<em>(expression)</em>], until[<em>(expression)</em>] </code>- execute the instruction;
    retain while/until the given XPath expression is true.</li>
</ul>

These are some relavent sections from the ACM style CSS:

*        { font-family:Times-Roman; font-size:9pt; }
p        { padding-bottom:3pt; text-align:justify; hyphenate:true; }
dl,ul,ol { margin-left:12pt; }
li       { text-align:justify; hyphenate:true; padding-bottom:3pt; }
code     { font-family:Courier; font-size:8pt; font-weight:bold; }
sup      { vertical-align:4pt; font-size:6pt; }
footnote { font-size:8pt; font-style:italic; }

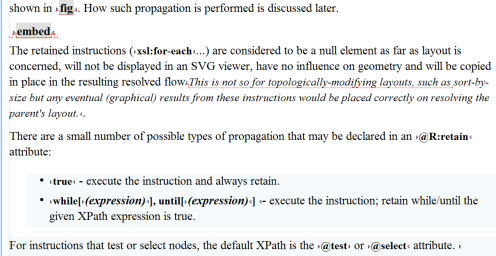

And this is what it looks like when viewing the combination in Oxygen's Author mode.

Figure 8: ACM styling in a document authoring mode

When we transform the CSS into XSLT and apply it, we now get:

<div lay:float="always" lay:id="d48e871" style="font-family:Times-Roman;font-size:9pt">
  <figure id="sE2" height="free" style="font-family:Times-Roman;font-size:9pt">
    <embed src="simpleExtend-2.svg?type=tree simpleExtend-3.svg"
       xpath="(.//svg:g[@id='main']/*,./*)[1]" stack-offset="50" TYPE="image/svg-xml"
       gap-y="5" height="20" columns="2" box="no" lay:same.scale="true"
       style="font-family:Times-Roman;font-size:9pt"/>
  </figure>
  <p class="caption" style="font-family:Times-Roman;font-size:9pt;padding-bottom:3pt; text-align:center;
     hyphenate:true;margin-top:5pt;font-weight:bold">Figure 6. A continual variation of Figure 5</p>
</div>
<p font-family="Times-Roman" style="font-family:Times-Roman;font-size:9pt;
   padding-bottom:3pt;text-align:justify;hyphenate:true">The retained instructions (
   <code style="font-family:Courier; font-size:8pt;font-weight:bold">xsl:for-each</code>
   ...) are considered to be a null element as far as layout is concerned, will not be displayed
   in an SVG viewer, have no influence on geometry and will be copied in place in the resulting resolved flow
   <sup class="fnIndex" style="font-family:Times-Roman;font-size:6pt;vertical-align:4pt">8</sup>.</p>
<p class="footnote" lay:footnote="footnote"
   style="font-family:Times-Roman;font-size:9pt;padding-bottom:3pt;text-align:justify;hyphenate:true">
   <sup class="fnIndex" style="font-family:Times-Roman;font-size:6pt;vertical-align:4pt">8</sup>
   This is not so for topologically-modifying layouts, such as sort-by-size
   but any eventual (graphical) results from these instructions would be placed correctly
   on resolving the parent's layout.</p>
<p font-family="Times-Roman"
   style="font-family:Times-Roman;font-size:9pt;padding-bottom:3pt;text-align:justify;hyphenate:true">
   There are a small number of possible types of propagation that may be declared in an
   <code font-family="Courier" style="font-family:Courier;font-size:8pt;font-weight:bold">@R:retain</code>
   attribute:</p>
<ul font-family="Times-Roman" style="font-family:Times-Roman;font-size:9pt;margin-left:12pt">
  <li font-family="Times-Roman" style="font-family:Times-Roman;font-size:9pt;text-align:justify;
      hyphenate:true;padding-bottom:3pt">
    <code font-family="Courier" style="font-family:Courier;font-size:8pt;font-weight:bold">true</code>
    - execute the instruction and always retain.</li>
                          ...
</ul>

which then gets converted to SVG and ultimately a PDF looking like this:

Figure 9: The final publication to ACM standards in PDF

Not only has this technique been used on a variety of professional papers, it has also been employed to generate PDF product data sheets for a well-known XSLT engine supplier, and indeed the entire styling of the author's PhD thesis.

Possible developments and Conclusion

This paper is reporting on work in progress and as such there are a number of areas which would need development for black box use, some of which have been introduced earlier. The most pressing, providing robust parsing of the CSS, is reported in the next subsection. Others that await development are:

div.fred > pre.code {
    font-size: 70%;
}
.alf, #bert {
    stroke-width: 33;
}
div#fred svg|p.code.emphasis {
    font-size: 25pt;
}

<ruleset>
 <selectors_group>
  <selector>
   <element name="div">
    <class name="fred"/>
   </element>
   <combinator type="&gt;"/>
   <element name="pre">
     <class name="code"/>
   </element>
  </selector>
 </selectors_group>
 <proplist>
  <declaration property="font-size">
   <percentage value="70"/>
  </declaration>
 </proplist>
</ruleset>

<ruleset>
 <selectors_group>
  <selector>
   <class name="alf"/>
  </selector>
  <selector>
   <id id="bert"/>
  </selector>
 </selectors_group>
 <proplist>
 <declaration property="stroke-width">
  <number value="33"/>
 </declaration>
 </proplist>
</ruleset>

<ruleset>
 <selectors_group>
  <selector>
   <element name="div">
    <id id="fred"/>
   </element>
   <combinator type="space"/>
   <element name="p" prefix="svg">
    <class name="code"/>
    <class name="emphasis"/>
   </element>
  </selector>
 </selectors_group>
 <proplist>
  <declaration property="font-size">
   <dimension value="25" unit="pt"/>
  </declaration>
 </proplist>
</ruleset>

<ruleset pattern="div[tokenize(@class,'\s+')='fred']
   /pre[tokenize(@class,'\s+')='code']"
   specificity="0,0,2,2">
 <selector pattern="div[tokenize(@class,'\s+')='fred']
   /pre[tokenize(@class,'\s+')='code']" specificity="0,0,2,2">
  <element name="div" pattern="div[tokenize(@class,'\s+')='fred']"
      specificity="0,0,1,1">
    <class name="fred" pattern="[tokenize(@class,'\s+')='fred']"
        specificity="0,0,1,0"/>
  </element>
  <combinator type="&gt;" pattern="/"/>
  <element name="pre" pattern="pre[tokenize(@class,'\s+')='code']"
      specificity="0,0,1,1">
   <class name="code" pattern="[tokenize(@class,'\s+')='code']"
        specificity="0,0,1,0"/>
  </element>
 </selector>
 <proplist>
   <declaration property="font-size" xpath="'70%'"/>
 </proplist>
</ruleset>

<ruleset pattern="*[tokenize(@class,'\s+')='alf']"
   specificity="0,0,1,0">
 <proplist>
   <declaration property="stroke-width" xpath="33"/>
 </proplist>
</ruleset>

<ruleset pattern="*[@id='bert']"
   specificity="0,1,0,0">
 <proplist>
  <declaration property="stroke-width" xpath="33"/>
 </proplist>
</ruleset>

<ruleset pattern="div[@id='fred']
   //svg:p[tokenize(@class,'\s+')='code']
          [tokenize(@class,'\s+')='emphasis']"
   specificity="0,0,2,2">
 <proplist>
  <declaration property="font-size" xpath="'25pt'"/>
 </proplist>
</ruleset>

<xsl:template match="*[tokenize(@class,'\s+')='alf']"
    mode="body.css" as="attribute()*" priority="1.506">
 <xsl:next-match/>
 <xsl:attribute name="stroke-width" select="33"/>
</xsl:template>

<xsl:template match="div[tokenize(@class,'\s+')='fred']
   /pre[tokenize(@class,'\s+')='code']"
    mode="body.css" as="attribute()*" priority="1.507">
 <xsl:next-match/>
 <xsl:attribute name="font-size" select="'70%'"/>
</xsl:template>

<xsl:template match="*[@id='bert']"
    mode="body.css" as="attribute()*" priority="1.508">
 <xsl:next-match/>
 <xsl:attribute name="stroke-width" select="33"/>
</xsl:template>

<xsl:template match="div[@id='fred']
    //svg:p[tokenize(@class,'\s+')='code']
           [tokenize(@class,'\s+')='emphasis']"
    mode="body.css" as="attribute()*" priority="1.509">
 <xsl:next-match/>
 <xsl:attribute name="font-size" select="'25pt'"/>
</xsl:template>
