Balisage Paper: Client-side XSLT, Validation, and Data Security

Context: CSX

As an acronym denoting client-side XSLT, CSX is offered in this paper in order to distinguish the focus from several closely related topics. It is a recognizable technology we have discussed – and demonstrated – for over two decades. Having an acronym for it distinguishes it (as an architecture and technology stack) from (on the one hand) broadly related topics such as XSLT (eXtensible Stylesheet Language) or declarative markup (see Declarative Markup bibliography) or (on the other hand) particular implementations such as (today) SaxonJS (Saxon JS). This is worth stressing because, while the projects described here are necessarily dependent on the stack on which they are built and deployed (in this case both SaxonJS and Github Pages), the questions I am seeking to pose are more general and more open and, hence, are easily confounded and confused with broader problems and considerations.

In an effort to keep this focus, this treatment:

Instead, there are observations, implications and, speculations describing and presenting an exploration of an idea within a real-world context.

Two Questions

Any technology demonstration will make more or less sense depending on its audience’s understanding of the context and purposes of use. To the eye, CSX looks just like any web page. Only architects and systems builders will typically know or care how information processing is distributed over a network. Yet what happens behind the scenes – in particular, which data sets are serialized (written) and transmitted where – can be very consequential. This paper and the demonstrations shown here are premised, it happens, on an interesting special case, namely what happens when data (specifically XML documents or data sets) to be processed belong not to the publisher but to the user; that is, the user is the consumer of their own data, the internet being used only as a delivery platform for the application and never a transmission medium for the data as such. This is in contrast to more familiar use cases, in which (however complex may be the transformation or the interactivity of presentation), the data to be viewed is still provided by the publisher (or other provider of the web page), not the user. The case where the user already has the data (and, indeed, might be tasked with evaluating it) is interesting not only because of its potential generality and ubiquity but because for many kinds of data – only one such example being data regarding system security and system security description – the user having the data may be more the rule than the exception. Do CSX applications prove to be advantageous in this kind of scenario?

Across application domains, the requirements we are confronted with are sometimes for very peculiar kinds of data processing with specialized data sets (see Lubell 2014, Piez 2018). The problem that arises is how to build, deploy and maintain systems that can meet these requirements and that are sustainable? In this context, XML and XSLT with their declarative foundations still offer the potential of transcending – while exploiting (it should be noted how they remain as dependencies in the foundations) – today’s HTML/CSS/Javascript/JSON web.^[3] In particular, today we see the intriguing possibilities of applications that go beyond rendering or display. In particular, CSX can in theory provide a basis for a distributed validation architecture supporting data exchange formats (especially open and non-proprietary formats) with validation here being defined loosely and widely to encompass any set of formal criteria subject to testing.

In this context, this paper is most interested in two questions at the intersection of many more:

Distributed validation as described here is another idea that is by no means new or especially innovative. As an example, the W3C Markup Validation Service (for HTML and kindred formats) comes to mind. It is not even new for CSX.^[4] Questions about the utility to users and communities of CSX-based validation, as balanced against other concerns such as ease of development or maintenance, remain. Does the flexibility and distributability of CSX make it well suited to address complexity at scale? One reason it is especially interesting – in light of the first question (what happens when the data belong to the user?) – is that the feature set of CSX as applied to validation very broadly (to include any analysis of fitness for processing) also appears to be a good fit for the requirements of the emerging domain of systems security-related data exchange.

Play-along demonstrations

The demonstrations are available at https://pages.nist.gov/oscal-tools/demos/csx/ (or in one case at https://wendellpiez.github.io/XMLjellysandwich/). As described above, all these demonstrations have in common one feature: they are designed to provide a useful application for users who bring their data with them. Unlike a publishing application (in which the content is provided along with formatting or rendering), these are applications where the assumption is that the user is already in possession of XML data that they wish to process.

For those who do not have suitable XML readily available, a compressed (zip) file of examples is also provided (linked from that page) to use.

Docuscope

The demonstration may be loaded in a web browser using link https://wendellpiez.github.io/XMLjellysandwich/docuscope/.

This is a generic application designed to work on any complete and self-contained XML input.^[5] It provides an analytic summary or synoptic view of the document, including showing its frequency of element (type) usage and mapping its abstract structure.

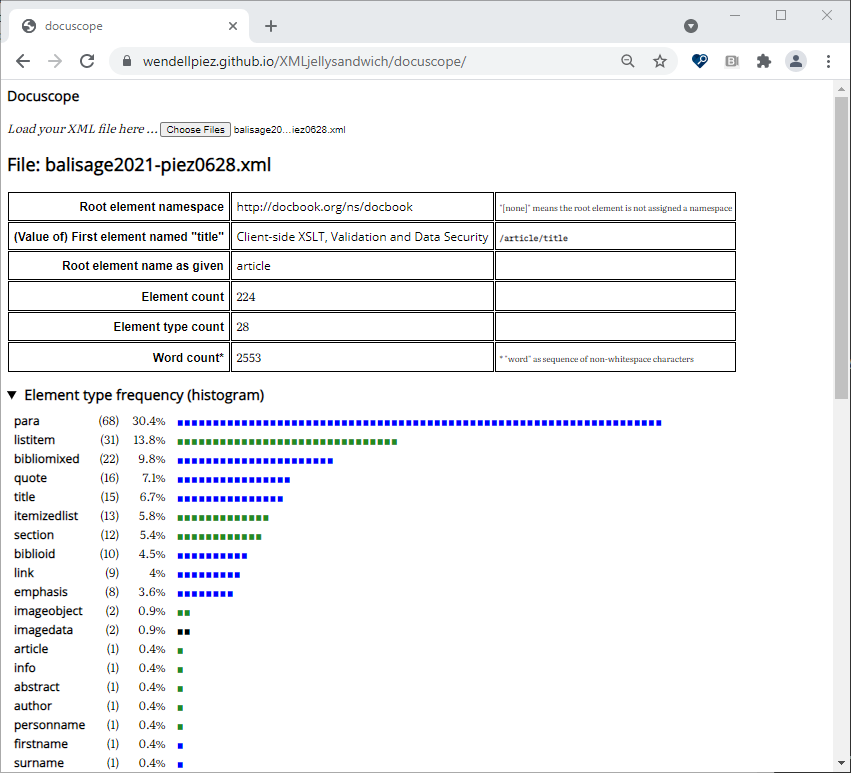

Figure 1: Two views of the docuscope (XML document inspection)

The document being displayed is a draft of this paper.

It is easy to envision situations in which such a generalized snapshotting capability can be useful; alternatively, the approach could be extended to support very specific kinds of query, validation or analysis for particular document types or usage scenarios (as the following examples also illustrate).

OSCAL baseline matrix

This demonstration may be loaded in a web browser using link https://pages.nist.gov/oscal-tools/demos/csx/baseline-matrix (OSCAL Tools CSX Demonstrations). This and the following demonstrations described here assume XML documents conformant with OSCAL, the Open Security Controls Assessment Language.^[6]

It loads an OSCAL profile (XML) document type and produces a formatted, tabular representation of its contents with a look and feel that emulates the official publication of analogous data sets.

For domain experts, this serves as an illustration of how, once requirements are clarified, automation can remove much of the most painstaking work of producing reasonably good production values in publication, thus (in this and potentially other ways) reducing significantly the effort (and cost) of developing and promulgating a baseline. This is, in part, because some of the more arduous operations are now automated and, in part, because editorial tasks and responsibilities are now decoupled from formatting, relaxing the need for close coordination between two high touch activities.

Figure 2: Emulating look and feel of an official publication

The second rendition here shows a display of two locally stored OSCAL profile instances (tagged as PROFILE_1 and PROFILE_2) loaded into and presented by the Baseline Matrix application. To generate the table, the user loads one or more valid OSCAL profile documents, which the browser then formats and displays, styling the data set as it would be shown in an official publication. The official publication in question (which offers this model) is NIST SP800-53B, as illustrated in the screen capture of the published PDF shown first.

As described in NIST Special Publication 800-53B, the security and privacy control baselines are predefined sets of controls (or their sub-items, control enhancements) specifically assembled to address the system and data security and protection needs of groups, organizations, or communities of interest. Each of the four control baselines defined in 53B is shown as a column in the table: HIGH, MODERATE, LOW and the supplementary PRIVACY baseline. (Of the core baselines, HIGH has the most controls and LOW the fewest, since HIGH is for systems that require higher security due to the nature of the data and systems, whereas LOW includes only the controls everyone should use. PRIVACY can be added to any baseline that needs it.) But as a starting point for the protection of individuals’ privacy, information, and information systems, each baseline is intended to be tailored further (i.e., customized), appropriately taking into account organizational missions and business functions, specific and credible threat information, the environment in which the organization operates, and individuals’ privacy interests. This tailoring takes the form first and foremost of adapting the control selection with reference to the catalog from which all the controls are derived; controls are removed from the baseline as inappropriate or inapplicable, or added. (Also see Lubell 2016 and Lubell 2020 for more work in this area. Joshua Lubell provided the idea for this demonstration.)

In the official publication, the tabular display lists the controls and enhancements from the catalog, noting for each line item whether an official baseline includes it. But when organizations have their own baselines (which remove or add controls as appropriate), the official tables are no longer applicable to them. OSCAL represents control baselines as OSCAL profiles; given such a profile (in XML), this application makes the table. Under CSX, the dynamic view can be produced for any profile and can be refreshed as needed.

OSCAL profile import examiner

The demonstration may be loaded in a web browser using link https://pages.nist.gov/oscal-tools/demos/csx/import-examiner (OSCAL Tools CSX Demonstrations).

This application provides an example of an application-specific validation, in the sense that it encapsulates a specific set of rules that together address some set of functional requirements (for the data in question), without addressing larger questions of formal validation to an abstract model.^[7] The point here is to use the validation in question to test the fitness of the document for (some kind of) processing, independently of and complementary with a validation of the same document against any appropriate schema(s).

A case in point is an OSCAL profile, which must be valid to the formal model defined for its document type, a set of rules that is expressed (for example) as an XSD (XML Schema Definition). However, in order to function as expected, a profile must be more than valid to its schema. In the case of a profile, for effectiveness (usefulness) in context, it needs to reference (<import>) another document – the OSCAL catalog – and, moreover, to reference the catalog’s own contents at a granular level.

This application tests the integrity of the links in an XML document to assess specifically the fitness of any OSCAL profile (loaded by the user) to be treated as a baseline or overlay (see above and also Lubell 2020) of a particular catalog over and above its validity to its formal model (as an OSCAL profile). For reference, the application includes four widely used (even de facto canonical or industry-standard) catalogs – namely, the full control set defined by NIST Special Publication (SP) 800-53, along with the three NIST SP 800-53B HIGH, MODERATE, and LOW security control baselines. The user can choose any of these as a basis for comparison (checking) of the loaded profile.

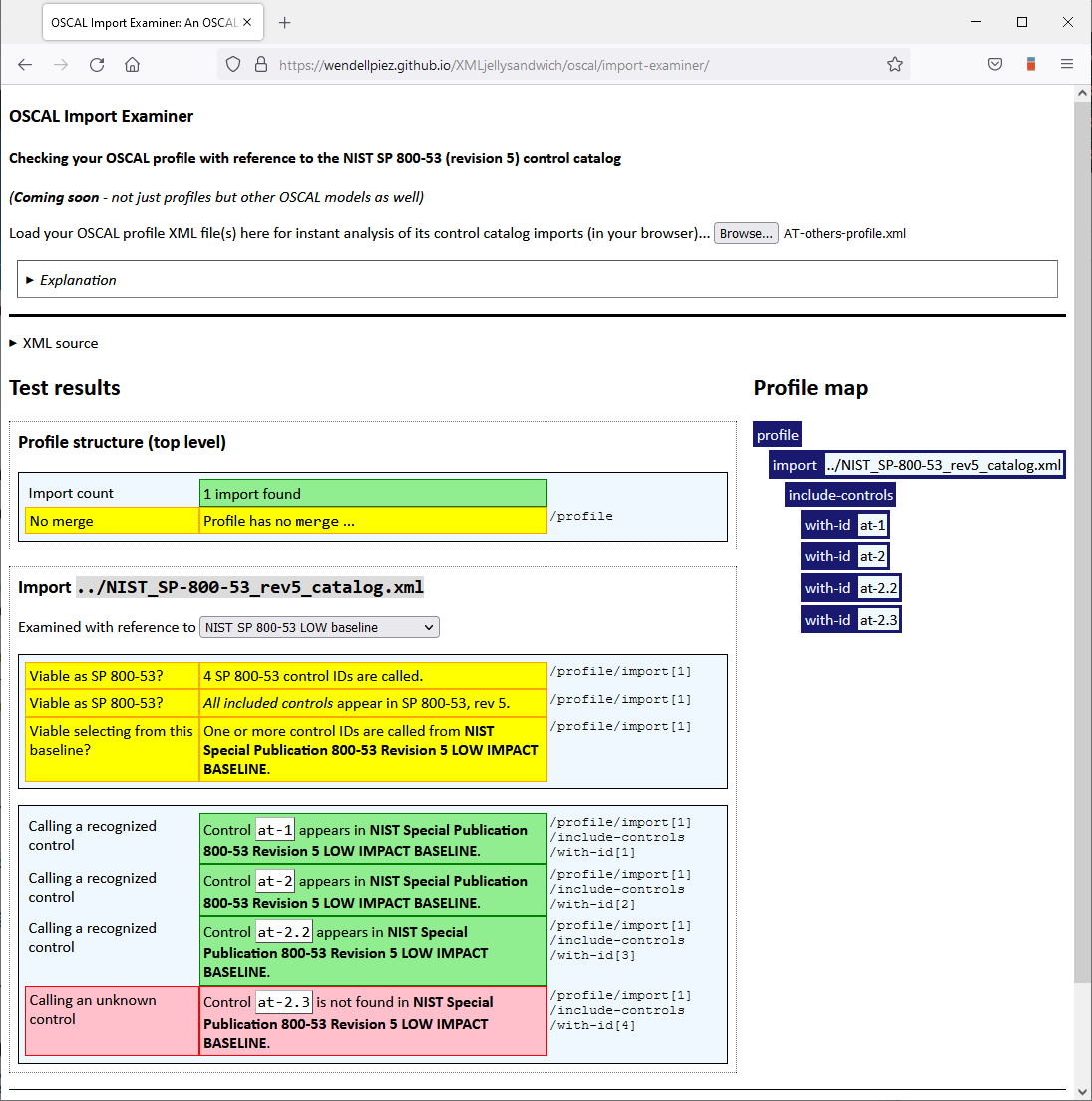

Figure 3: Broken import

Where an OSCAL profile imports a catalog and references its controls, controls that are not found can be detected by the Import Examiner and displayed as errors or issues. In this case, the loaded document would come up free (no errors) when evaluated against the HIGH baseline, which comprises a larger set of controls than LOW and including AT-2(3), the control imported here that shows up pink (as missing from LOW).

If a profile comes up clean (no issues) when examined in reference to the indicated catalog to be imported, the application reports it. Where there are issues, the Examiner also reports those. Such issues might include references to controls that do not exist; redundant or repeated references; contradictory or superfluous customizations of control contents (tailoring); and the like.

It is important to note that this is not an editor and does not offer the capability to create or change a profile. Rather, this application is meant to independently evaluate the correctness and conformance of tools and profiles produced by others, or as an independent check on the soundness of a profile still in draft.

OSCAL schema emulator

The demonstration may be loaded in a web browser using link https://pages.nist.gov/oscal-tools/demos/csx/validator in OSCAL Tools CSX Demonstrations.

In this case, the application offers the kind of top-down structural validation more usually provided by a conventional schema language. To provide this logic, the XSLT that is applied to the user’s document has been generated directly from an appropriate OSCAL metaschema (a document type I described in Piez 2019), which is the same source from which the authoritative OSCAL XSD is generated. Accordingly, assuming this implementation correctly supports the semantics of the Metaschema language, it will report the same issues as XSD validation would.

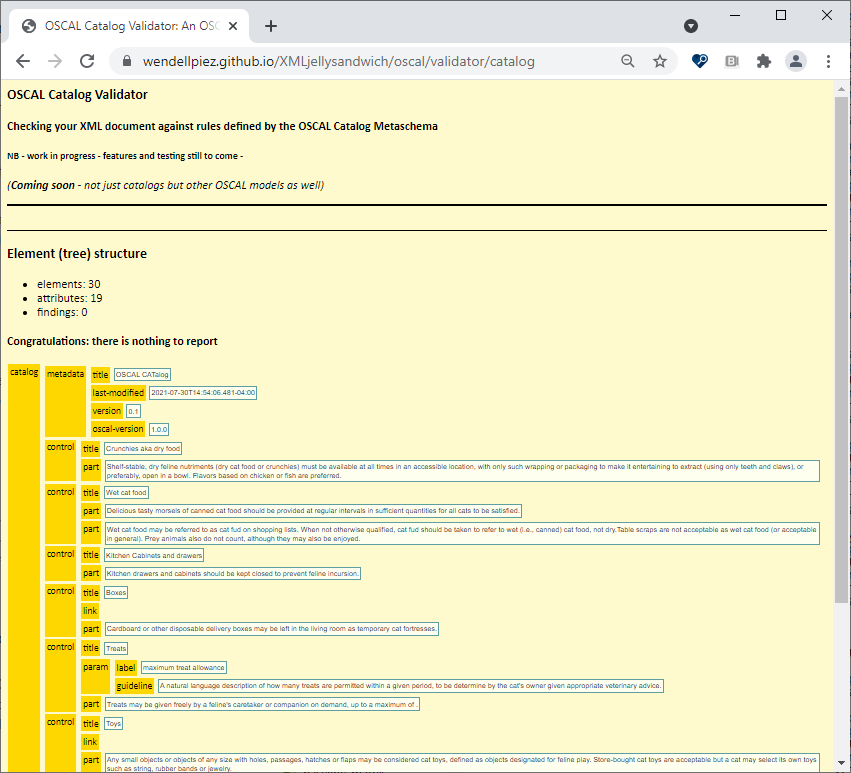

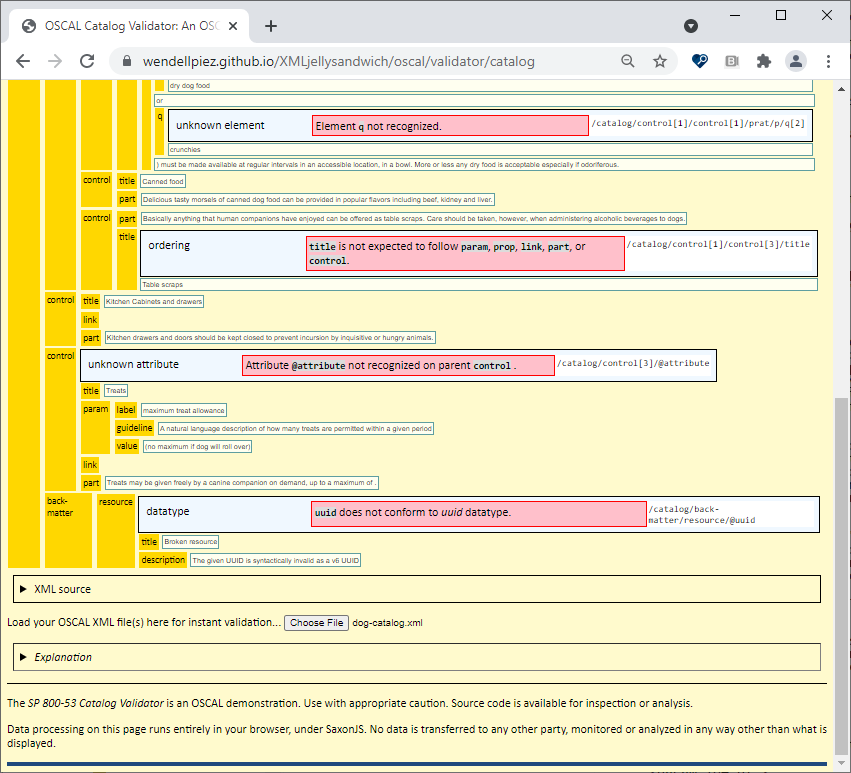

Figure 4: Valid and invalid in the schema emulator

The second document shows validation errors. (This is work in progress and user interfaces are rudimentary, but the errors here are correctly reported.)

This is of interest because (among other reasons) if XSLT can be deployed to support this kind of evaluation – in this case, to compile and deploy a higher order language describing constraints over data – a schema language – it can also presumably be deployed to support many other needs.

In other words, OSCAL Metaschema is not the only higher-order language that might be supported, in part or entirely, in an all-XSLT CSX deployment. In some ways this demonstration shows only that things can be done in XSLT that might be better done by other means and on other platforms. Yet the implications of that are profound. An application like this, which only emulates XSD, can also be a platform for another application that integrates this support with other functionality. It might reasonably be stipulated that such applications ought to be supported by schema-aware XSLT, without further layering or customization. And that is fair: we should be able to have either or both. In the CSX application we have all XSLT all the time. Indeed, by demonstrating the same errors over the same inputs as an XSD processor (those inputs being valid or invalid), this application helps to corroborate (i.e., to validate at a higher level) a parallel XSD-based (or other) implementation of OSCAL, just as it is tested and corroborated in return, at least with regard to the supported features. The fact that the Metaschema language supports only a subset of XSD functionality (specifically with respect to content models) is helpful (see Piez 2019).

As the application here is provided by an XSLT programmatically generated from a Metaschema, it is relatively easy to envision other kinds of declarative languages that could be implemented via XSLT code generation and CSX-based deployment.

CSX for systems security applications

When we plan for everything to happen on the client system, we can deploy the application from a plain http (web) server with minimal or no special configuration. There is no need for a user’s data ever to be exposed outside the local environment. The application having been delivered to the browser to execute, nothing is logged.

This raises some interesting questions about the special suitability or attractiveness of CSX for applications in which access, exposure, and confidentiality may be at issue. The domain of document exchange related to systems security is only one example where such requirements are common or prevalent.

Yet, even given this narrower scope, the questions here go beyond whether it is attractive to promote systems integrity and security by respecting – enforcing – system boundaries in application delivery and deployment (a question that would seem to answer itself). Once we can distribute not only data but capabilities, we can also envision decentralized networks not only of data exchange but of validation of artifacts of exchange. Are they what they say they are? Are they properly configured for use as expected? What features, usual or unusual, do they manifest? The problem here is not only how to exchange, and not even how to define exchange – to validate – but also how to ensure validability.^[8] To be able to distribute application code to process data securely and independently has its attractions when we wish our data to interoperate without actually sharing it.

Specifically with respect to CSX, the same questions must be asked as we pose regarding any technology stack. What exactly is the security posture of SaxonJS and its dependencies (runtime and compile time)? Do we need a security assessment of SaxonJS? How about the XSLT that provides the actual logic to a CSX application and a critical point of exposure – how do we authenticate source and runtime (compiled) distributions? Surely the situation here is not worse than it is on the open web with Javascript libraries. But they are questions that should be asked precisely because the information custody model of CSX – data are not exposed except to the user – is so attractive.

Generalized capabilities

The good news here, especially for application domains that do not face the same challenges in either trust or access management, is that none of the XSLT methods or techniques used in any of those demonstrations (as opposed to the particular semantic exercised) are specific to the document type they address. It is quite easy to forecast how other domains and other types of documents present similar opportunities to their users, constituents, developers, and service providers; the hard work of formalizing these models provides a foundation for much more. The logic used to perform some of the OSCAL validations shown might be exactly the same as useful logic applying to TEI, DITA, or any of the commonly used XML documentary standards.^[9]

<xsl:key match="person" name="persons-index" use="'#' || @xml:id"/>
...
  <xsl:if test="exists(key('persons-index',@ref,$prosopography))">...</xsl:if>

<xsl:key match="party" name="parties-index" use="@uuid"/>
...
  <xsl:if test="exists(key('parties-index',@party-uuid,$authorizations))">...</xsl:if>

Another way of putting it is that while certain activities must be undertaken to understand these requirements in context, and to develop solutions to them, these activities are themselves intelligible and fairly well understood, and require and reward a set of common, transferable skills.

Things to do with your data

Considered generally, only a very brief and high-level survey is possible of the kinds of applications that might be deployed and maintained via CSX, with all the logic embedded in an XSLT and its contracts with a (more or less well defined) set of XML documents.

Distributed validation is one such application, as well as third-party validation – where the data are produced by A with tool A1, consumed by B with tool B1, but also validated by C. A concept of micro-validation is also conceivable, where full top-down validation of an XML instance, against the comprehensive rules of any nominal type, is not performed but only targeted validation of particular features related to particular rules and contracts.

Even more broadly, distributed data conversion capabilities are conceivable via CSX. Going beyond transformation as a service (a model in which the client sends the data up and receives a result back down), this would be transformation as a product. As shown, example, perhaps a tool provides a preview more like the section “OSCAL baseline matrix” demonstration than like a formal validation – a preview being its own kind of validation. A crowd-sourced editing project might use such a tool to facilitate quality control. A conference might offer its authors a capability to preview papers as they would look in a published Proceedings. Authors then preview their own papers on their own systems without further effort on the publisher’s part.

Expand this view even further and imagine micro-editors or customized, task-oriented interfaces – especially when these applications have Save As capabilities.

Additionally, it is not difficult to prognosticate possibilities from loading not one XML (or other) document but several at run time. One document could be a nominal source, while a second could be a set of rules expressed declaratively (such as a Schematron or something like it). Now the validation being performed is not simply hard-wired by the stylesheet, but instead dynamic, evaluating the user’s document in light of the user’s rules.

This opens the door to domain-specific languages of all kinds, both in XML applications and in applications that consume other formats. Given an XSLT-based parser implementation, a CSX application could read plain text – or any kind of specialized notation expressed in plain text – and produce markup.

Data description ecosystems

The wider implications would seem to be directly related to the potentials for well-structured, declarative formats as solutions to domain-specific problems. Distributed validation assumes that shared rule sets (whether or not described as standards) are in use, while it also stipulates that within the rules, actual data will be versatile and reusable over the long term in a wide range of different (while also consistent) applications. Otherwise, what is the point? Targeted validation strategies applied to specific use cases, application profiles, or even best practices descriptions, is one way of easing this tension.

It is not quite enough that rule sets can be exposed and shared as a commons. The declarative information models on which they depend must also be secure, which essentially also means standardized and supported by freely available public specifications. These are truisms within the markup community and among publishing technologists. Twenty years ago, we might have said having standards and even commodity tools is not enough; we also need to work out how to share rules. But they bear repeating at a moment when we are seeing new sets of rules emerge and become salient, even central, such as the peculiar sets of rules that relate to our data descriptions for security data (whether expressed in OSCAL or other formats). Together with and on the basis of the models and abstract specifications there is an entire ecosystem of tooling, both specialized and commodity tooling, that supports them and ultimately provides for the payback on our (considerable) investment, in the form of meaningful outputs or (put another way) actionable knowledge. A feature of client-side XSLT (CSX) is that it is encapsulated and manageable from an operational point of view – an important consideration in a many-fits-all operational scenario – while at the same time, it interoperates well – consuming the same data, executing the same paths – with other XML technologies on other platforms. If CSX is powerful, then CSX delivered by an XML database serving data over the web will be especially powerful. But even if you never connect the two, the simple fact that you can move your data across them makes them a powerful combination.

There are, it is true, concerns that also go with this higher level of question, such as validating the applications themselves. Some of those concerns were mentioned above (section “CSX for systems security applications”); more broadly, we can also stress that validation is finally done only in execution. This brings us back to fundamentals such as maintaining consistent inputs, replicating results, and publishing the results of testing openly. Any and all of the applications described in this paper might ideally (and maybe will) be supplemented with suites of unit tests that demonstrate the boundaries of their functionality in a way observable by any party. One pair of eyes is best checked with another.

Summary and Conclusion

In this paper I offered a new acronym, CSX, to designate an architecture, client-side XSLT, that I think rewards attention even while we have talked about it (in various implementations) for many years. Past demonstrations of CSX (including those offered by this author) have often proclaimed its potential, and in that respect, at least, we break no new ground: it still has great potential. The demonstrations offered and discussed here, however, seek to go at least one or two steps further to test more of these ideas in practice, by exploring real applications supporting operations that are actually meaningful to domain experts in the field.

The domain explored in these demonstrations specifically (namely, information system security as supported by the open, machine-readable formats now emerging to support data interchange among parties with interests at stake in this information) is both very specialized, and also not unusual in being specialized. One way it is special (but not unusual) in its requirements for information security; this is often information we would be happier not to send over the wire. CSX becomes interesting if it means that capabilities of using, evaluating, and testing the information come to us, while the information itself never leaves.

To the extent they are realized, the broader significance of these capabilities could go well beyond even the availability of tools for process improvement, because tools support standards even while standards support tools, and healthy standards will also enable new and better processes. In the case of CSX, we have a stack built on foundations in descriptive markup (XML) and declarative processing (XSLT), which (due to the web-based deployment model) conveniently requires little or no extra overhead to the end user, but which also (on the developer’s side) comes ready-made to work with – integrate with and exploit – other related technologies. These shared foundations provide not only infrastructure but also a common base of knowledge, enabling solutions that are adaptable and responsive to new problems and new forms of old problems.
