Feature Structures in a Nutshell

Feature structures are a common means of representation in formal linguistic theory.^[1] Their use is most prominent in certain variants of generative grammar (Shieber, 1986) ^[2], but not constrained to the syntactic level of analysis, e.g., there are linguistic applications in phonology, morphology, semantics and pragmatics, too. Furthermore, feature structures can be characterized as a general purpose data structure (ISO24610, 2006) with possible applications in the vast field of knowledge representation. Hence, their usefulness is by no means constrained to linguistic investigations alone.

From a mathematical stance, there are at least two perspectives on feature structures (Shieber, 1986). On the one hand, a feature structure can be construed as a partial function from a set of features to a set of values. The value associated with a certain feature can be either atomic, e.g., a specific symbolic value as element or a binary value like true, or it may be complex. The latter means that it can be a full-blown feature structure itself or it may be of a collection value type like a set or a list of, again, possibly complex values. We will come upon numerous examples below. Due to the availability of complex values, feature structures can embed other feature structures in value position and, hence, provide a considerable degree of representational articulateness. Note that there will be no significance to the order of features that are located on the same hierarchical level within a feature structure.

Another mathematical perspective derives from graph theory and leads to the characterization of feature structures as rooted labeled directed (acyclic)^[3] graphs. Graphs (Diestel, 2005) are mathematical entities that consist of sets of nodes and edges. We can think of the edges of a graph as connecting its nodes. Graphs can be depicted in an intuitively appealing way as diagram displays. The labeled edges represent the features, the leaf nodes represent the atomic values, and the inner nodes, if any, represent the complex values of a feature structure. Figure 2 is an example graph display of the feature structure F₁, compare Figure 1 in the preceding section for the TEI counterpart.

Figure 2: Graph Display of the Feature Structure F₁

There is an alternative to the visualization of feature structures as graph displays. It consists in the use of attribute value matrices.^[4] In attribute value matrix notation, the features are written to the left of their associated values and there are brackets that indicate the scope of the (sub-)feature structure(s) involved.^[5] Figure 3 shows F₁ in attribute value matrix notation, compare Figure 1 and Figure 2 above for the TEI- and graph display counterparts. Concerning the forthcoming examples in this article, we will only use the TEI format and the attribute value matrix notation.

Figure 3: Attribute Value Matrix Notation of the Feature Structure F₁

Feature structures list correct information and only correct information, but they do not necessarily contain all the correct information with regard to a specific object, i.e., they may be of a partial nature.^[6] Partiality can be a good thing, since it allows for feature structures to capture generalizations via the underspecification of certain properties.

When features have identical values, there are two scenarios to consider: the values can be either type- or token-identical. If the values are merely type-identical, we can characterize them as being independent of one another. A hypothetical change to one of the values would have no effect on the other values involved. However, in case of token-identity the features are associated with one and the same value token and, hence, are dependent on it. A change to the token would affect all the features that reference it. This latter scenario of token-identity is also called coreference, structure sharing or reentrancy. In attribute value matrix notation, it can be indicated by means of co-indexed boxes that either act as a referring place-holder in value position or they may be written before a certain value token and such all occurrences of the index within the feature structure are bound to that value. We will come upon an example in the next subsection of this article, cf. Figure 5 below. At the graph display level, we would use edges that lead into one and the same node in order to indicate structure sharing.

An important operation upon feature structures is unification (Shieber, 1986). The foundational idea is fairly simple and can be sketched as follows: the result of the unification of compatible feature structures is the most general feature structure that contains all the information of the unified feature structures. Technically, unification is defined via the auxiliary concept of subsumption. Subsumption implements an intuitive concept of specificity and wealth of information among feature structures. We define that a feature structure F' subsumes a feature structure F'' if F' contains a subset of the information in F'' (Shieber, 1986). Alternatively, we may say that F' carries less information than F'' or that F' is more general than F''. Subsumption is a partial order on the set of feature structures, since feature structures may be incompatible with each other. Now, we can define the unification of two feature structures F and G, if any, to be the most general feature structure H, such that F subsumes H and G subsumes H. If the feature structures to be unified are incompatible, we say that the unification fails. A related operation that works in the opposite direction is generalization. This operation is the dual of unification. We can define the generalization of two feature structures F and G to be the most specific feature structure E, such that E subsumes F and E subsumes G. Unlike unification, generalization cannot fail. In the worst case, the result will be the empty feature structure [ ] that subsumes every feature structure.

It should be noted that feature structures can be typed (Carpenter, 1992). However, neither the present state of the representations nor the implemented transformation that we describe in this paper does make use of typed feature structures, so we won't go into details regarding that topic here.

The TEI Tag Set for Feature Structures

The TEI tag set for the representation of feature structures has been a part of the TEI Guidelines since version P3 (Sperberg-McQueen and Burnard, 1994). Building on the P4 version (Sperberg-McQueen and Burnard, 2001), an ISO standard (ISO24610, 2006) was adopted by ISO TC37 SC4 and also implemented in the current P5 version (Burnard and Bauman, 2007) that we use here.

The foundational XML elements that are needed in order to encode feature structures are fs for feature structures and f for features. The content of an fs element consists of a sequence of feature-value specifications. A feature-value specification is encoded using an element of type f for the feature and the element content of f for the associated value. The details look as follows. Every f element has an attribute name for its feature name. The representation of the associated value of a feature depends on the exact type of the value involved. Atomic values of type binary, symbol or numeric are realized via a value attribute on a respective child element of f that corresponds to the actual value type. For example, f may have a child element binary which has a value attribute that provides the desired parameter. If the value is of the string type, however, the value is encoded in a slightly different form, i.e., as the literal element content of a respective string child element of f.

Complex values of the feature structure kind are encoded by means of fs elements, of course. However, there is also another class of complex values: these are the collection values of the list, set and bag type. Such collections of values are indicated via vColl elements that have an org attribute whose value specifies the respective collection type, i.e., whether it is a bag, a set or a list. The content of a vColl element consists of a succession of values of any kind.

<fs>
 <f name="F">
  <vColl org="list">
   <vLabel name="a">
    <fs>
     <f name="I">
      <symbol value="a"/>
     </f>
     <f name="J">
      <symbol value="b"/>
     </f>
    </fs>
   </vLabel>
   <vLabel name="b">
    <fs>
     <f name="K">
      <symbol value="c"/>
     </f>
     <f name="L">
      <symbol value="d"/>
     </f>
    </fs>
   </vLabel>
  </vColl>
 </f>
 <f name="G">
  <vLabel name="a"/>
 </f>
 <f name="H">
  <vColl org="set">
   <vLabel name="b"/>
   <fs>
    <f name="M">
     <symbol value="e"/>
    </f>
    <f name="N">
     <symbol value="f"/>
    </f>
   </fs>
  </vColl>
 </f>
</fs>


There is a special element in order to indicate cases of structure sharing: the vLabel element. It either contains a value token as its element content or it occurs as a placeholder which indicates reference to an elsewhere specified value token. Each vLabel element has an associated name attribute. The value of the name attribute corresponds to the index of a tagged box in attribute value matrix notation, see below. This mechanism allows for various structure sharing configurations within a single feature structure. Figure 4 (TEI-based representation) and Figure 5 (attribute value matrix notation) display the same abstract example feature structure F₂ in different notation formats and exemplify the themes of structure sharing and collection values.

Figure 5: Attribute Value Matrix for F₂: Structure Sharing and Collection Values

There are three top-level features in F₂: F, G, and H. All of them are associated with complex values. F has a list collection value, which is encoded using angle brackets at the attribute value matrix level, G has a feature structure as its value, and H has a set collection value that is indicated using curly brackets in Figure 4. The first list value of F and the complex value of G are co-indicated. The same holds for the second list value of F and the firstly notated set member of H.

Representation of XML Documents via TEI Feature Structures

Both feature structures and XML documents can be regarded from the perspective of graph theory (Diestel, 2005). XML documents are specimen of ordered trees, while feature structures are merely unordered directed acyclic graphs. This holds because of the possibility of structure sharing within feature structures and because there is no order imposed among features of the same level within feature structures. So, the task of representing XML documents as feature structures seems to involve a transformation from a more rigidly structured representation format to a less rigidly structured one. Specifically, we have to find a way to represent the ordered sequential relations that hold among parts of XML documents both at the text and at the markup level in terms of feature-value pairs. Furthermore, also the hierarchical relationships have to be expressed in terms of feature-value specifications. A possible solution consists in the use of specific features for hierarchical aspects whose values will be structured themselves and which have to be interpreted as reflecting sequential relationships.

In the following, we shall regard a simple annotation data example that will help to illustrate our points. It is shown as Figure 6 and Figure 7 below, which contain morphological and phonological annotation layers of the German verb "geben" (engl.: to give).

<w>
 <m type="lexical">geb</m>
 <m type="flexive">en</m>
</w>



<w>
 <syll n="s1">ge</syll>
 <syll n="s2">ben</syll>
</w>


In the rest of this section we will follow a historical route and discuss two representation alternatives that we came up with. Both of the sketched solutions will be sufficiently general and can hence be applied to generic XML documents and sets of multiple annotation documents alike. Our discussion will be framed more towards multiple annotation here.

Our first and historically older representation alternative I makes use of a list notation variant that is defined in a recursive way using FIRST and REST features (Witt et al., 2009). The basic idea is to have the very first element of a given sequence, e.g., the first character of a text sequence, as the value of the FIRST feature and the result for the rest of the sequence as the value of the REST feature. So, the latter value will usually be a complex value, again, that is structured according to the very same scheme, i.e., with the first item of the (rest-)sequence detached and so on.^[7] We go over the sequence in this way until we reach its end where the recursion bottoms out by *null* as the value of the at most embedded REST feature within the list structure. It functions as a placeholder for the empty list.


<fs>
 <f name="DATA">
  <fs>
   <f name="FIRST">
    <vLabel name="1">
     <symbol value="g"/>
    </vLabel>
   </f>
   <f name="REST">
    <fs>
     <f name="FIRST">
      <vLabel name="2">
       <symbol value="e"/>
      </vLabel>
     </f>
     <f name="REST">
      <fs>
       <f name="FIRST">
        <vLabel name="3">
         <symbol value="b"/>
        </vLabel>
       </f>
       <f name="REST">
        <fs>
         <f name="FIRST">
          <vLabel name="4">
           <symbol value="e"/>
          </vLabel>
         </f>
         <f name="REST">
          <fs>
           <f name="FIRST">
            <vLabel name="5">
             <symbol value="n"/>
            </vLabel>
           </f>
           <f name="REST">
            <symbol value="*null*"/>
           </f>
          </fs>
         </f>
        </fs>
       </f>
      </fs>
     </f>
    </fs>
   </f>
  </fs>
 </f>
 <f name="TIER1">
   ...
 </f>
 <f name="TIER2">
   ...
 </f>
</fs>

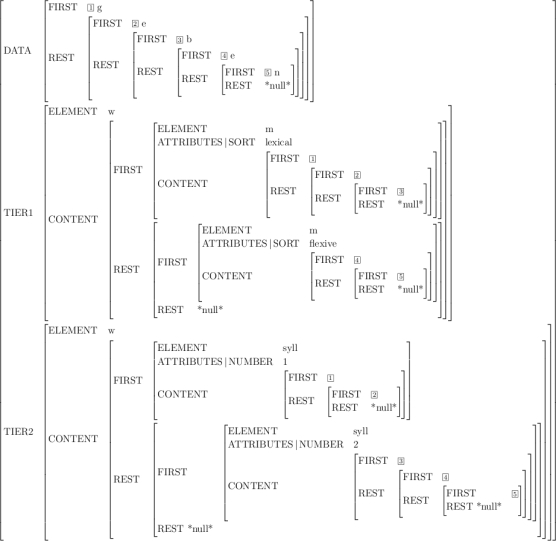

This way of representation is displayed in Figure 8 in an abridged TEI feature structure format that shows the top-level feature geometry of the structure :^[8] DATA contains a representation of only the textual characters of the document adhering to the FIRST/REST scheme discussed above. Furthermore, each character is associated with its own index in order to allow for structure sharing references to it from other parts of the feature structure. We provide an index for every character in order to allow for arbitrarily specific levels of annotation with respect to the common textual data. The numbered TIER features contain the specific information of the annotation levels. Each one represents the information of one of the multiple annotation documents involved. The implicit link between the different levels is made explicit by means of structure sharing. Therefore, there will be plenty of references to the common data characters from within the different TIER features of the document. However, this is not an explicit part of the example display in Figure 8 due to space considerations.^[9]The binding of indexes to certain values is shown within the DATA feature, but the reference to such values is hidden within the abridged TIER levels of the document. However, those parts and the connections provided by the structure sharing mechanism can be inspected in Figure 9 that shows the attribute value matrix notation. Unlike its TEI counterpart, this display is complete and probably a bit easier to follow. It also displays the mechanics of the representation of the hierarchical relationships. They find expression via CONTENT features, whose values contain the representation of the subordinated document parts, e.g., the content of an element. The mechanisms for the representation of the hierarchical and the sequential relationships have to be combined as appropriate. This means that CONTENT will have a list value and the respective position within that list will reflect the sequential order among the dominated document parts.

Figure 9: Representation Alternative I: Attribute Value Matrix

We move on to the discussion of our historically newer representation alternative II, which forms the basis of our current work on the topic. The most important changes have been made regarding the representation of sequential relationships and concerning the general feature geometry makeup. Consider Figure 10 which shows the changed top-level geometry . As its predecessor counterpart in Figure 8, this display is incomplete and printed in an abridged format here. However, interested readers can find the complete version of this representation of the example data in Appendix A.


<?xml version="1.0" encoding="UTF-8"?>
<fs>
 <f name="DATA">
  <vColl org="list">
   <vLabel name="1">
    <string>g</string>
   </vLabel>
   <vLabel name="2">
    <string>e</string>
   </vLabel>
   <vLabel name="3">
    <string>b</string>
   </vLabel>
   <vLabel name="4">
    <string>e</string>
   </vLabel>
   <vLabel name="5">
    <string>n</string>
   </vLabel>
  </vColl>
 </f>
 <f name="DOCUMENTS">
  <vColl org="list">
   <fs>
     ...
   </fs>
   <fs>
     ...
   </fs>
  </vColl>
 </f>
</fs>


On the top level, this representation consists of a DATA feature and a DOCUMENTS feature. Both features take complex values of a collection type, i.e., lists of values. Concerning DATA, we now have a flat list representation with little internal structure. This format can be built in an easier way as compared to the more structured variant. The move to this format is possible, since the TEI Guidelines provide this kind of notational sugar for values of the collection kind.^[10] The DOCUMENTS feature also makes use of this kind of list notation and embeds the representation of the different annotation documents as a flat list of respective feature structures. Note also that there is just one such top-level feature now, compare the different numbered TIER features in representation alternative I. If there is only one annotation document to process, the list will contain only one corresponding feature structure, of course. Figure 11 is a complete display of the attribute value matrix for our example data.

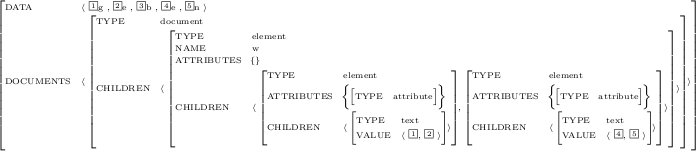

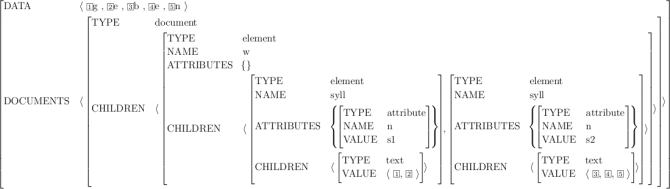

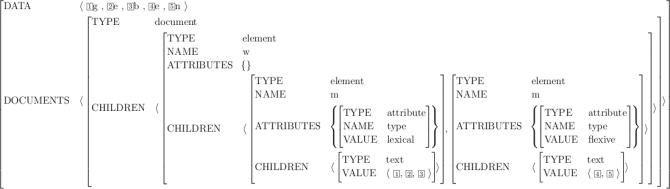

Figure 11: Representation Alternative II: Attribute Value Matrix

This way of representation takes a stance that is based on the XQuery 1.0 and XPath 2.0 Data Model (XDM) and, hence, the representations will be predestined for processing in an XSLT 2.0 context. We use the attributes which are provided by the XDM in order to represent the different node kinds within an XML document, starting from the very root. The node kinds that are distinguished are: document, element, attribute, namespace, commentary, processing instruction and text nodes. Every occurrence of a node is represented as a feature structure with features as appropriate for the node kind involved. The type of a node is indicated via the TYPE feature for nodes of all kinds. Hierarchical relations are represented via the CHILDREN feature for document- and element nodes. Order among the children nodes is encoded by the position within a sequence, since CHILDREN takes a collection value of the list kind. Element nodes and attribute nodes have NAME features, attribute and text nodes have VALUE features. Furthermore, each element node has an ATTRIBUTES feature that takes a set value, since attributes are unordered. The semantics associated with the different feature-value pairs should be straightforward. All in all, this approach allows for a very systematic representation regime across the different parts of an arbitrary XML document instance. Unlike the older approach, every feature structure which is embedded below the DOCUMENTS top-level feature now represents a certain node at the XML tree model level. However, it also has to be noted that our feature structure representations of XML documents tend to grow very fast with the size of the input document, which, however, seems to be true for all approaches based on TEI feature structures due to the modeling as feature structure and also the retranslation to XML involved.^[11]

If the input to the transformation program does not consist of multiple annotation documents, but rather of one or several arbitrary XML documents, which do not share identical primary data, an integrative representation of such documents will still be build in a similar way. However, there will be no indexing mechanism incorporated and so no implicit links will be made explicit.

Aspects of the XSLT Implementation of the Transformation

The program xmls2avm.xsl that implements the transformation to the TEI feature structure format was written with multiple annotation documents in mind. Nevertheless, it is robust enough to provide a result document if the input documents to the transformation fail the test of primary data identity or if there is only one document to be transformed. Such kind of robustness marks a necessary condition for the program to be useful within the generic XML realm.

The program was written in XSLT 2.0 and uses certain features of the new XSLT version. For example, data typing is used for at least some of the parameters and variables involved and, most importantly, we exploit the extended functionalities and constructs that are grounded on the XDM tree model. XSLT 2.0 comes with support for multiple output documents, but the multiple input documents that are needed here still have to be provided via a sort of workaround: a call of the document()-function to a post-processed representation of a stylesheet parameter. The latter contains a list of secondary input documents that has to be assigned by the user when invoking the transformation program from the command line. Several further stylesheet parameters are provided in order to parameterize certain aspects of the transformation process and to determine peculiarities of the desired representation format. Most of this is optional, however, since there are defaults for the relevant parameters. An example stylesheet parameter is $firstrestRepr: it influences the way how lists are represented. If it is set to true, then lists will be represented in the recursively structured way that has been introduced as our historically older representation alternative I in the previous section. If it is set to false, however, then lists will be represented according to the newer flat representation alternative II that exploits the notational sugar provided by the TEI guidelines. The parameter is set to false as a default.

Although we decided that we would not include detailed comments on the whole stylesheet^[12], we do provide three illustrative template examples below. These will be the templates for document nodes (in default mode), attributes and text. Besides these, the full stylesheet also contains templates for document nodes (in secondary mode), elements, processing instructions, comments. Furthermore, there are named templates for the processing of nested sequences and for the processing of nested sequences with regard to namespaces, as well as many additional parameters and variables defined.

We begin our discussion with the template for document nodes in default mode, i.e., the mode that is used at the start of the transformation without further ado. The template shown in Figure 12 will be applied to the document node of the primary input document at the start of the transformation.

<xsl:template match="document-node()" mode="#default">
 <xsl:variable name="children" select="node()"/>
 <xsl:variable name="textnodes" select="//text()"/>
 <fs>
  <xsl:if test="$dataIdentity and $dataRepr">
   <f name="DATA">
    <vColl org="list">
     <xsl:for-each select="str:characters($primaryString)">
      <vLabel name="{position()}">
       <string>
        <xsl:value-of select="."/>
       </string>
      </vLabel>
     </xsl:for-each>
    </vColl>
   </f>
  </xsl:if>
  <f name="DOCUMENTS">
   <vColl org="list">
    <fs>
     <f name="TYPE">
      <symbol value="document"/>
     </f>
     <f name="CHILDREN">
      <xsl:choose>
       <xsl:when test="$firstrestRepr">
        <xsl:choose>
         <xsl:when test="$children">
          <xsl:call-template name="SequenceProcessing">
           <xsl:with-param name="seq" select="$children"/>
          </xsl:call-template>
         </xsl:when>
         <xsl:otherwise>
          <symbol value="*null*"/>
         </xsl:otherwise>
        </xsl:choose>
       </xsl:when>
       <xsl:otherwise>
        <vColl org="list">
         <xsl:apply-templates select="$children"/>
        </vColl>
       </xsl:otherwise>
      </xsl:choose>
     </f>
    </fs>
    <xsl:apply-templates select="$docRoots" mode="secondary"/>
   </vColl>
  </f>
 </fs>
</xsl:template>


The template starts with the definition of variables that can be referenced within the scope of the template. Most of the other templates in the stylesheet use such template variables, too. Then the first fs element of the target representation is inserted. This will be the outer frame for all the result markup that is created during the transformation. The two usual top-level features for a feature structure representation of XML documents are DATA and DOCUMENTS, compare our discussion of representation alternative II in the previous section. It is possible to drop even the DATA feature and go with the DOCUMENTS feature on the top-level of the feature structure alone. This possibility has been parameterized using $dataRepr, i.e., the user may decide whether he wants a DATA feature at the top-level or not. Furthermore, a variable named $dataidentity has been defined on the global stylesheet level. This variable implements a test for the identity of the primary textual data of all the input documents involved. Now, if DATA shall be present and the test result concerning textual data identity is positive, then the feature will be inserted into the result and be given a list value. The content of that list will be construed as follows: we iterate over all textual characters of our primary input document. For each character, we insert index markup (vLabel) with a numerical index attribute according to the position value of the respective character. Furthermore, the index will be bound to the character value whereas the latter is framed by a string element to indicate its value type. Next is the obligatory DOCUMENTS feature. It will take a list of feature structures, i.e., a list of fs elements. Those will represent the input documents, respectively.

In what follows in this template, we build the representation for the primary input document. The corresponding job for the other input documents, if any, will have to be done by the template for document node kinds in secondary mode. The two features appropriate for document nodes are TYPE and CHILDREN. Concerning TYPE, its value will be <symbol value="document"/> obviously. The value of CHILDREN, however, is more complicated and has to be determined via a series of conditional constructs. Firstly, it depends on whether the list representation has been set to the older recursively structured kind ($firstrestRepr) or not. If list representations follow that approach, then it depends again on whether the document node has descendants or not. If he has none, we insert a value for the empty list (*null*). However, if there are descendant nodes to the document node, the further calculation of the list representation is taken over by a called template of the recursive kind named SequenceProcessing. This template is called with the sequence of the current document node's descendant nodes as a parameter. That template will build a recursively structured kind of list representation as appropriate. However, if the value of the parameter $firstrestRepr is set such that we will have the flat kind of list representation, which is the default, then markup for a collection of the list kind will be inserted. However, the content of that list will be determined by the result of applying templates to all the descendant nodes of the current document node. Thus, the content of the fs element for the current primary input document is complete and can be closed with the respective end tags. What remains to be computed is the markup for the other secondary input documents. Therefore, templates are applied to the members of $docRoots, which holds the document nodes of the secondary input documents in a sequence format. Note, that a mode (secondary) is used in the respective apply-templates instruction, so the present template will not fit and we avoid a repeated insertion of the initial framing markup for the outermost level of the feature structure representation, which is only included in the processing of the primary input document here.

The complete stylesheet can be characterized as exploiting aspects of both the push and the pull processing paradigm (Tennison, 2005), like most stylesheets of a considerable size and complexity do, whereas the focus is shifting in different parts of the stylesheet. In a similar vein, it can be classified as implementing different stylesheet design patterns (Kay, 2008). For example, the buildup of the initial target feature structure tends to be of the pull type or rather navigational, to use Kay's concept. This, however, shifts towards a more push- or rule-oriented approach, which helps to fill up the missing parts of the initial structure by applying templates to the descendants of the current node. Appropriate templates are provided for each specific node kind against the background of the XDM. Certain aspects, e.g., the buildup of the older FIRST/REST list structures have been realized in a computational way recursively via calls to named templates with parameters as their arguments. We shall look at a recipient template of the push- or rule-oriented style of processing next in Figure 13. It is the template for the processing of attribute nodes, whose application will be initiated from within the template for the processing of element nodes.

<xsl:template match="attribute()" mode="#all">
 <fs>
  <f name="TYPE">
   <symbol value="attribute"/>
  </f>
  <f name="NAME">
   <string>
    <xsl:value-of select="node-name(.)"/>
   </string>
  </f>
  <f name="VALUE">
   <string>
    <xsl:value-of select="."/>
   </string>
  </f>
 </fs>
</xsl:template>


In comparison to the previous template for document nodes, this one is very straightforward. There are three features appropriate for feature structures that represent attribute nodes: these are TYPE, NAME and VALUE. The respective values are very easily determined. Readers who managed to follow through on our description of the previous template should have no problems with this one.

At the heart of the transformation of multiply annotated documents is the indexing of the single characters and the reference mechanism that exploits these indexes. It is dependent on the relative position of characters with respect to the other characters of the document. Those values can be used as numerical indexes since they are bound to be constant across all the documents that pass a test of primary data identity. However, it has to be stressed that the computational cost of implementing this functionality can be considerable for large input documents. Figure 14 shows the code which does the job: it is the template for text nodes.

<xsl:template match="text()" mode="#all">
 <xsl:variable name="currentRoot" select="/"/>
 <fs>
  <f name="TYPE">
   <symbol value="text"/>
  </f>
  <f name="VALUE">
   <xsl:choose>
    <xsl:when test="$dataIdentity">
     <xsl:variable name="numberOfCharactersSoFar" as="xs:integer"
                   select="sum(for $textnode in preceding::text() return string-length($textnode))"/>
     <vColl org="list">
      <xsl:for-each select="str:characters(string(.))">
       <vLabel name="{position() + $numberOfCharactersSoFar}">
        <xsl:if test="not($dataRepr) and $primary is $currentRoot">
         <string>
          <xsl:value-of select="."/>
         </string>
        </xsl:if>
       </vLabel>
      </xsl:for-each>
     </vColl>
    </xsl:when>
    <xsl:otherwise>
     <string>
      <xsl:value-of select="."/>
     </string>
    </xsl:otherwise>
   </xsl:choose>
  </f>
 </fs>
</xsl:template>


There are two appropriate features for text nodes: TYPE and VALUE. The TYPE feature is set to the symbolic value text, of course. The procedure for determining the value of the feature VALUE, however, is much more complicated. This holds at least for multiple annotation documents, where the identity of the primary data is given ($dataIdentity). If this is not the case, we can just insert the value of the textual node as a whole. With regard to the data-identity scenario, however, we will proceed on a character by character basis with the help of an appropriately defined external function (str:characters) and calculate the appropriate index for each character. The interesting part of the calculation is done in the binding of the variable $numberOfCharactersSoFar. That result will be modulated by the relative position of each character with respect to the string value of the text node processed. If the user chose to go without the DATA feature on the top feature geometry level (not($dataRepr)) and if we are processing the primary input document ($primary is $currentRoot), not only the calculated indexes will be included in the list-valued result, but also the character values. Now that there is no specialized DATA feature, the indexes will be bound to their respective value tokens here.
